Author Topic: PY digifant ecu pinout  (Read 44795 times)

Offline hayesey

  • Administrators
  • *****
  • Posts: 5828
  • The CV joint killer
    • ClubG40
PY digifant ecu pinout
« on: May 09, 2008, 12:29:12 pm »

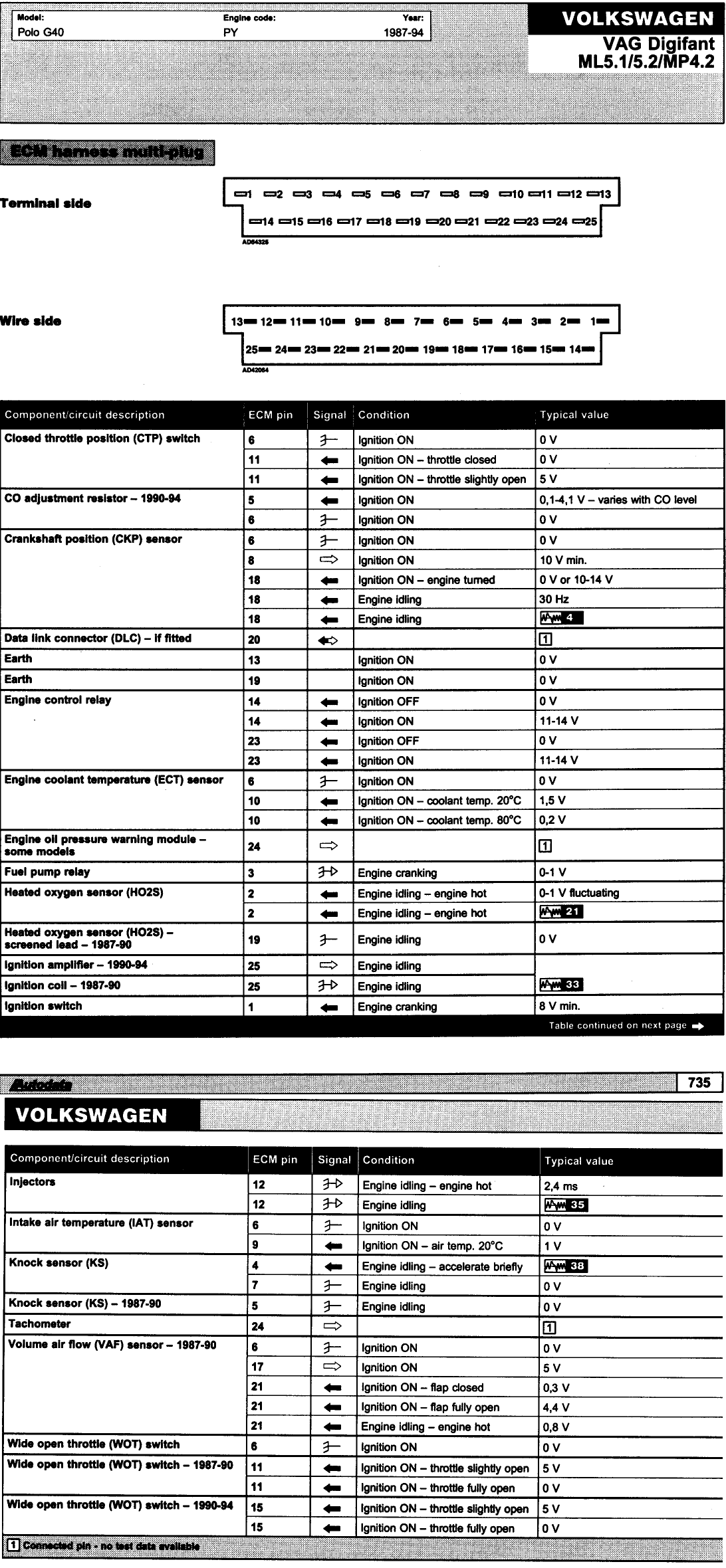

Pages taken from Autodata showing the Polo G40 Digifant ECU connector pin-out, which sensor each pin goes to and what values to expect for each sensor (I'd take these values with a pinch of salt really...).

Click the image below for full size:



« Last Edit: December 08, 2008, 11:45:58 am by hayesey »
Logged

Offline Tav

  • Members
  • *****
  • Posts: 425
Re: PY digifant ecu pinout
« Reply #1 on: June 03, 2008, 11:44:47 pm »
Now this is the sort of information that could make this forum great.
Logged

Offline N1CKY

  • Members
  • *****
  • Posts: 87
Re: PY digifant ecu pinout
« Reply #2 on: March 27, 2012, 06:30:03 pm »
Sorry to bump, But heres some more detailed pictures with a key for people like me who didnt know what the symbols meant.





Logged
